Chief® White SpeedConnect Above-Tile Suspended Ceiling Kit

Product Overview

This above ceiling tile kit provides a host features that make installing most lightweight front projectors faster and more secure.

Includes a high-performance, dual gang housing, isolated ground, dual receptacle outlet featuring non-sacrificial multi-stage filtration and surge protection. This protects equipment from disruptive high frequency noise and damage caused by power disturbances.

WireVice Cable Suspension System for quick and easy tie-off

TwisTile Ceiling Tile Cutter easily pierces a circular hole in the ceiling tile for extension column

Flexible solution provides infinite column placement within a 2' x 2' or 2' x 4' ceiling tile

Single and dual electrical outlet cutouts

All-Points Security System provides exclusive locking hardware at column connection point to protect against theft

Includes (4) 25' flexible cables, (4) wood eyebolts, (4) concrete anchors and a chrome trim ring

Fits 24" (600 mm) wide ceiling tile grids

1.5" NPT compatible

Surge and Filter Module

Non-volatile spike protection with LED power indicator

Non-sacrificial multi-stage technology. Non-current limiting design passes full power on a regular circuit; redundant protection circuits

Improves the reliability and functionality of connected equipment by safeguarding equipment from high energy transients, lightning strikes and electronic noise events that can cause gear degradation and downtime

Line filter reduces common and differential mode noise by up to 40 dB

Rated for 125V~, 60Hz, 15 A

1875 watt maximum

Ferrite toroid based EMI Filter

Withstand rating of 240 VAC continuous without damage or loss of protection

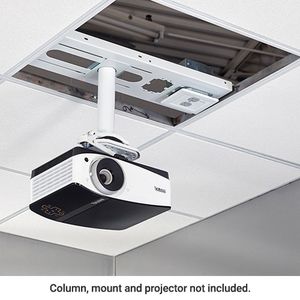

*Column and projector mount not included, must be purchased separately.
