Chief® White 2' x 2' Above Suspended Ceiling Storage Box

Product Overview

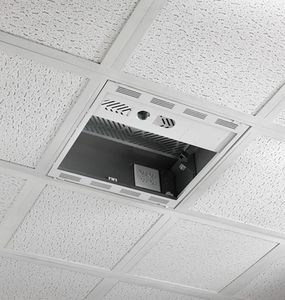

The CMS492C conceals AV equipment above a 2' X 2' ceiling tile and supports a 1.5" NPT column drop for mounting projectors within the same tile grid providing a clean professional look for classrooms and conference rooms.

Optimal pipe flexibility within the tile helps with less reliance on image correction improving image quality

Drop carriage door improves accessibility and serviceability providing full access to equipment

Detachable power housing can be pre-installed with electricians on site and assembled to the storage box at a later time

Inside the box or facing the room

Up to 2 single gang or 1 dual gang outlet

4 nested knockouts for 1-1/4", 1", & ½" diameter conduit

Built in ventilation

AV tray supports a variety of AV components

Ships with 1 shelf, 2nd shelf sold separately see CMSUNV2

1 RU rack rail brackets sold separately, see CMS1RU

Overall weight capacity 100 lbs (45 kg)

50 lbs (22 kg) for projector ceiling plate

25 lbs (11 kg) per shelf location

Ships with speed connect installation hardware

Lightweight construction, one man installation

UL evaluated for use in Air-Handling Spaces as defined by Article 300.22, Sub-clause (C) of the NEC

TAA Compliant
