Product Overview

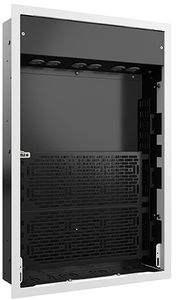

Includes a high-performance, dual gang housing, isolated ground, 4-receptacle outlets featuring non-sacrificial multi-stage filtration and surge protection. This protects equipment from disruptive high frequency noise and damage caused by power disturbances.
Multiple depth break away edge allows compatibility with standard 3.5" stud and 2.5" stud bays (89 or 64 mm)
Provides a larger, easy-to-organize space to accommodate AV equipment - 22" (559 mm) tall
Pre- and post-construction installation options
Knockouts for single gang outlets and 1-1/4", 1", and ½" conduit
Unmatched small device mounting flexibility built-in, with patented Lever Lock™ plates
Patented universal hole pattern simplifies mounting of small devices
Includes PACL2 Lever Lock™ plates mountable at four different depths in four different locations
Paintable white flange to blend in any environment
Allows for AV devices to be mounted in advance before terminating cables on site
PACL2 plate can be snapped in half to create two smaller sections
Printable backplane template for planning purposes
Additional PACL2 Lever Lock™ plates can be purchased separately for even more mounting options
For electrical safety, Lever Lock™ plates are black zinc plated which allows them to be grounded to the in-wall box via the spring-loaded lever
Optional black PAC527CVR-KIT or white PAC527CVRW-KIT covers to blend in any environment.
Enclosure is UL 2416 Listed for installation of AV, IT & Communication Technology Equipment
Filter And Surge Protected Receptacles
Non-volatile spike protection with LED power indicator
Non-sacrificial multi-stage technology
Non-current limiting design passes full power on a regular circuit; redundant protection circuits
Improves the reliability and functionality of connected equipment by safeguarding equipment from high energy transients, lightning strikes and electronic noise events that can cause gear degradation and downtime
Line filter reduces common and differential mode noise by up to 40 dB
Rated for 125 VAC, 60 Hz, 15 A
1875 watt maximum
Ferrite toroid based EMI filter
Withstand rating of 240 VAC continuous without damage or loss of protection
