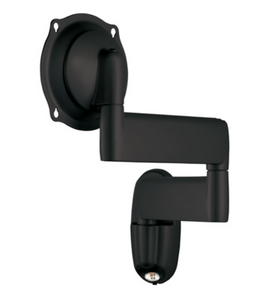

    Chief® Professional AV Solutions Black Medium Low Profile In Wall Swing Arm Mount


    Model #:

    JWDIW210B

    Model #: JWDIW210B
    83112
    Chief
    $304.80

    At a Glance

    A low-profile mount with Centris Technology provides smooth, fintertip tilt in all directions designed to be hidden in the wall.Read More

    $304.80

    People also viewed:

    Get to know this product.

    Product Overview

    Product Overview

    Low profile, designed to ensure that the mount remains concealed behind the screen

    Used with the MAC501B installed in between 16" on center studs.

    No header or footer necessary

    Smooth extension up to 21" (538 mm) to achieve ideal viewing angle

    Back of TV sits close to the wall (0.1" for VESA 100 x 100mm screens and 0.65" for screens having up to 400 x 400mm patterns)

    VESA&reg Compatibility: JWDIW210: up to 200 x 200mm, JWDIWU: up to 400 x 400mm

    Note: Must order MAC501 to complete installation

    Specifications

    General Specs

    Product Weight (lbs.)13.15
    TiltYes
    TV Size's up to (in.)45
    Weight Capacity (lbs.)75
    Mounting LocationWall

    General

    ColorBlack
    Maximum Extension17" (431.8mm)
    Minimum Depth0.1" (2.5mm)
    Mounting Pattern Compatibility (Universal Versions)100 x 100mm PDR2190S, x 100mm, 200 x 200mm
    NotesRequire MAC501B. Depth and Extension do no include interface bracket (adds 0.5 - 1.5")
    Post-Installation Leveling RollYes
    Shipping Weight13.15 lbs (5.96 kg)
    Solution TypeUniversal
    Tilt+ 15° , - 15°
    Typical Screen Sizes26 - 45"
    Wall Stud Compatibility In16" (406 mm)
    Weight Capacity75 lbs (34 kg)
    OrientationLandscape, Portrait
    WarningProposition 65 Warning for California Residents
