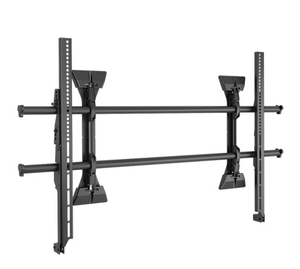

    Chief® Professional AV Solutions Black Fusion™ X-Large Fixed Wall Mount


    Model #:

    XSM1U

    Model #: XSM1U
    83542
    Chief
    $375.00

    At a Glance

    Product Dimensions 26.25"h x 42.75"w x 2.25"d

    Chief upgraded fixed wall mounts based on installer feedback and direct observations of installers in the field. Many new features join Fusion favorites like Centerless shift, ControlZone leveling adjustment and ClickConnect Latching.Read More

    $375.00

    People also viewed:

    Get to know this product.

    Product Overview

    Product Overview

    New benefits included added stability, faster install, improved lateral shift, easier cable management and enhanced security.

    Installer-inspired Fusion fixed mount solves top flat panel installation problems, offering flexible adjustments for large displays with a low-profile display mounting solution.

    Integrated teardrop design speeds up wall plate installation by allowing pre-installation of the bolts to the wall

    ControlZone Leveling for post-installation fine tuning of height and leveling

    Centerless Shift provides up to 21.4" (543 mm) of post-installation lateral shift for limitless centering

    Set screws keep the mount rigid, stable and secure throughout the life of the installation

    ClickConnect offers an audible click when the screen safely engages with the mount

    Built-in cable stand provides easy access under the screen

    A full line of accessories can be installed with the mount and the entire unit can be adjusted together

    Multiple installation options for various stud distances

    Exclusive nesting spacers can be stacked to achieve any depth

    Quick-Store Cords use magnets to easily store and access pull cords

    Improved cable management with new end caps

    Integrated Security

    Ships with a custom hardware kit that can be hung from mount rails if installing in stages

    Easy Open box with less waste to throw away

    Specifications

    General Specs

    Product Weight (lbs.)25.35
    Depth (in.)2.25
    Width (in.)42.75
    Height (in.)26.25
    TV Size's up to (in.)82
    Weight Capacity (lbs.)250
    Mounting LocationWall

    General

    CertificationsUL Listed, OSHPD Approved, TÜV Certified
    ColorBlack
    Lateral Shift21.4" (543 mm)
    Manual Height Adjustment1" (25 mm)
    Minimum Depth2.25" (57 mm)
    Mounting Pattern Compatibility (Universal Versions)100 x 100 mm - 1070 x 600 mm
    Overall Dimensions (H x W x D)26.25 x 42.75 x 2.25" (667 x 1086 x 57 mm)
    Shipping Weight11 kg
    Solution TypeUniversal
    Typical Screen Sizes55 - 100"
    Wall Stud Compatibility In24" - 42" (610 mm - 1067 mm)
    Weight Capacity250 lbs (113.4 kg)
    OrientationLandscape
