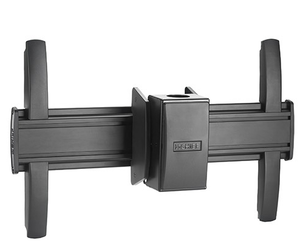

Chief® Professional AV Solutions Black FUSION™ Large Flat Panel Ceiling Mount

Chief

Model #:

LCM1U

Model #: LCM1U

83248

Chief

$545.00

At a Glance

Product Dimensions 16.5"h x 26.8"w x 6.4"d

Chiefs FUSION™ Flat Panel Ceiling Mounts are installer inspired and offer perfect TV positioning and flexible adjustments for large flat panel screens. Great for digital signage installations.Read More

$545.00

Request More Info

Get to know this product.

Product Overview

Ceiling Plate and extension column are required and must be ordered separately

Compatible with traditional 1.5" NPT and new CPA pinned ceiling plates and column systems

See ceiling plates and extension columns (Adjustable and Fixed) for 1.5" NPT compatibility

See CPA ceiling plates and CPA columns for pin connection compatibility

Provide aesthetic covering to the rear side of the displays, components and mount using the Chief Fusion Universal Back Covers.

Continuous tilt ranges with four set locking points to eliminate guess work when adjusting multiple screens.

Simple on/off connection for ease of installation and service.

Effortlessly adjust display using Centris fingertip tilt technology.

Tool free screen engagement with optional padlock security.

Mount swivels to any preferred viewing angle. Set screws lock in desired angle.

Useful Documents

Manual

Specifications

General Specs
Product Weight (lbs.)	18.87
Tilt	Yes
Depth (in.)	6.4
Width (in.)	26.8
Height (in.)	16.5
Weight Capacity (lbs.)	125
Mounting Location	Ceiling
General
Adjustments	Roll, +/- 3°
Certifications	UL Listed
Color	Black
Equipment Weight Capacity	125 lbs (56.7 kg)
Mounting Pattern Compatibility (Universal Versions)	200mm x 100mm - 616 x 400mm
Number Of Monitors	1
Shipping Weight	18.87 lbs (8.56 kg)
Tilt	+ 5° , - 20°
Typical Screen Sizes	32 - 65"
Weight Capacity	125 lbs (56.7 kg)
Orientation	Landscape
