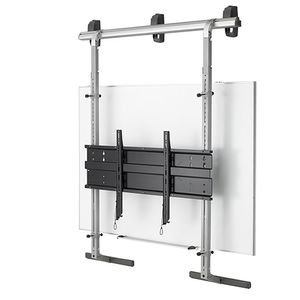

Chief® Over-the-Whiteboard Interactive Display Mount

Product Overview

It also provides height variability to accommodate younger children or those seated at lower levels.

Accommodates typical large displays between 50-80” andVESA® up to 1020 - 500 mm, specify FHB7037 bracket to extend to VESA® 1020 - 600 mm

Heavy-duty weight capacity of 310 lbs (140.6 kg)

Display height adjustment range of 26” (660 mm)

Interface brackets mount directly to display, then hang on single rail-style cross bracket, eliminating need to remove display from box prior to installation

Installs into various wall types (wood, concrete, steel, cinder-block)

Flexible wall assembly anchoring points ensure a minimum of two studs are used - three brackets for 16” on-center studs, or two brackets for 24” on-center studs are included

Integrated lateral shift allows for easy adjustment left or right

When installed, mount allows for a minimum of 4” (102mm) clearance from wall

Plumb adjustment up to 1.5° to compensate for uneven walls

Telescoping legs allow mount to be adjusted easily around classroom obstacles
