Chief® Micro-Adjustable Telescoping Whiteboard Mount

Chief

Model #:

WBM3E

Model #: WBM3E

980794

Chief

$320.00

At a Glance

Product Dimensions 82.78"h x 46.93"w x 4.92"d

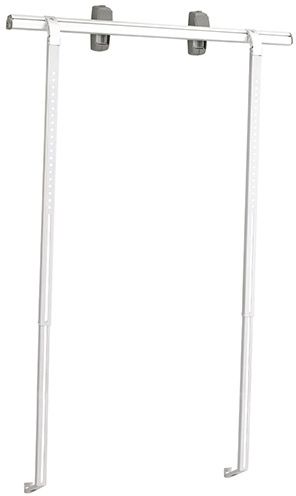

The WBM3E installs directly to the wall over pre-existing dry erase boards or chalkboards without causing damage. The WBM3E provides maximum flexibility needed for the variation prevalent from classroom to classroom. This mount hosts telescoping legs that can be anchored between 5-7 feet.Read More

$320.00

Request More Info

Get to know this product.

Product Overview

See WBAP2 adjustable platform accessory for mounting SMART™ complete i2, i3, i4, i5, i6 ix & ix2 solutions using UF45, UF55, UF65, UF75, UF70, UX60, & UX80 projectors.

See WBAU universal adapter kit for mounting interactive boards other than SMART™

Compatible with 800, 600, & M600 Series boards

Dual Lateral Shift options

Mount shifts left/right at the wall installation

Additional adjustment can be achieved by sliding the uprights and interactive board left/right along the mount crossbar

Macro & Micro Height Adjustments

Macro height adjust at uprights in 1" increments

Micro height and leveling adjust at wall assemblies up to 1.5"

Telescoping legs can be locked down infinitely using knobs on the fly

Flexible and Stable installation

Legs telescope 5 - 7ft between top and bottom anchor points

Anchor at 4 pts around obstructions above and below dry erase/chalk board

Ideal for all audiences including younger children

Weight Capacity 125 lbs

Useful Documents

Installation Instructions

Technical Drawing

Specifications

General Specs
Depth (in.)	4.92
Width (in.)	46.93
Height (in.)	82.78
Outdoor Approved	No
Smart Compatible	No
Touchscreen	No
Other Specifications
Certifications	UL Listed
Extension	57.84" - 82.78" (1469 - 1892 mm)
Weight Capacity	125 lbs (56.7.7 kg)
Orientation	Landscape
