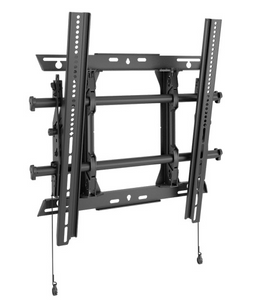

    Chief® Fusion® Medium Black Portrait Tilt Wall Mount


    Model #:

    MTMP1U

    Model #: MTMP1U
    83415
    Chief
    $175.20

    At a Glance

    Product Dimensions 24.5"h x 20.9"w x 3.2"d

    The installer-inspired Fusion® tilt mount solves top flat panel installation problems, offering flexible adjustments for large displays with a low-profile display mounting solution.Read More

    $175.20

    People also viewed:

    Get to know this product.

    Product Overview

    Product Overview

    Chief's Fusion® tilt wall mounts were developed based on installer feedback and direct observations of installers in the field. Favorite Fusion® features include Centerless shift, Centris tilt, ControlZone leveling adjustment and ClickConnect Latching.

    Benefits included increased stability, fast installation, easy cable management and security. The installer-inspired Fusion® tilt mount solves top flat panel installation problems, offering flexible adjustments for large displays with a low-profile display mounting solution.

    Key Features

    Integrated teardrop design speeds up wall plate installation by allowing pre-installation of the bolts to the wall

    Centerless Shift provides up to 17.5" (445 mm) of post-installation lateral shift - 8.75" (222 mm) left/right of uprights - for limitless centering

    Centris low-profile tilt uses the center of gravity to balance the screen while maintaining a low profile

    Set screws keep the mount rigid, stable and secure throughout the life of the installation

    ClickConnect offers an audible click when the screen safely engages with the mount

    Built-in cable stand provides easy access under the screen

    A full line of accessories can be installed with the mount and the entire unit can be adjusted together

    Multiple installation options for various stud distances

    Exclusive nesting spacers can be stacked to achieve any depth

    Quick-Store Cords use magnets to easily store and access pull cords

    Improved cable management with new end caps

    Integrated Security

    Ships with a custom hardware kit that can be hung from mount rails if installing in stages

    Easy Open box with less waste to throw away

    Useful Documents
    Specifications

    General Specs

    TiltYes
    Depth (in.)3.2
    Width (in.)20.9
    Height (in.)24.5
    Mount TypeTilt
    TV Size's up to (in.)47
    Weight Capacity (lbs.)200
    Mounting LocationWall
    Compatible Vesa Sizes100 x 100-571 x 600mm
    CollectionFusion®
    Color Finish NameBlack
    Number Of Mounts1

    General

    CertificationsUL Listed, OSHPD Approved, TÜV Certified
    Lateral Shift10.4" (265 mm)
    Manual Height Adjustment1" (25 mm)
    Solution TypeUniversal
    Tilt+5°, -12°
    Typical Screen Sizes43 - 47"; and stretch aspect displays with compatible mounting patterns
    Wall Stud Compatibility In16" and single stud, weight capacity is reduced to 125 lbs (56.7 kg) for single stud mounting
    OrientationPortrait
