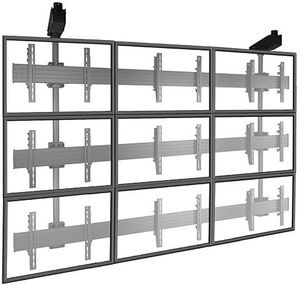

Chief's FUSION ceiling mounted solutions make it possible to construct video walls in prominent locations where walls aren't available. Great for digital signage installations.Read More
Screen array configuration: screens wide x screens high.
Confirm screen compatibility with MountFinder™.
Provide aesthetic covering to the rear side of the displays, components and mount using the Chief Fusion Universal Back Covers.
Easily align displays with independent knobs for height and plumb adjustments, no tools required.
Micro-height and leveling adjustment at all column intersection points.
Infinite vertical and lateral adjustments provide tight display rows and columns.
Solid construction supports displays up to 55" and 85 lbs (38.5 kg) per screen.
Add configurations side by side to create any video wall arrangements up to 3 screens tall.
CEILING PLATE and EXTENSION COLUMN are required and must be ordered separately
Compatible with traditional 1.5" NPT and new CPA pinned ceiling plates and column systems.
General Specs | |
| TV Size's up to (in.) | 46 |
| Mounting Location | Ceiling |
General | |
| Adjustments | Micro-Adjustments of 2" at structural intersection points |
| Certifications | UL Listed, TAA Compliant |
| Color | Black |
| Manual Height Adjustment | 1" (25.4 mm) increments at structural intersections |
| Mounting Pattern Compatibility (Universal Versions) | Any width x 100 mm - 400 mm |
| Notes | Weight capacity is per display |
| Number Of Monitors | 9 |
| Plumb Adjustment | Micro-adjustment up to 0.75" (19 mm) |
| Screen Array Configuration | 3 x 3 |
| Shipping Weight | 235 lbs (106.59 kg) |
| TV Height Range | Max Screen Height is 27" (686mm) |
| Typical Screen Sizes | 42" - 46" (107 - 117 cm) |
| Weight Capacity | 85 lbs (38.6 kg) |
| Orientation | Landscape |
