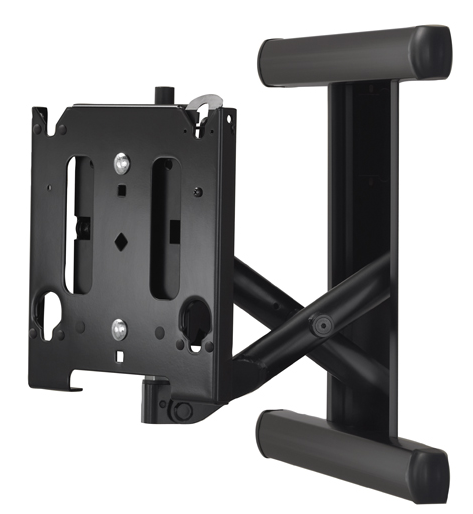

The MIWRF brings in-wall swing arm technology to the next level, creating a low profile installation for any flat panel display.Read More
Get perfect TV centering without cutting studs
Ultra low-profile mounting solution
Provides limitless centering of the flat panel on the wall between 16" center studs without cutting studs - no header/footer necessary
Low-profile design hides the mount behind the display
Centris Technology provides smooth, fingertip tilt
Provides post-installation height adjustment
ClickConnect Technology provides an audible click to confirm that the flat panel is locked in place
Screen can be installed in portrait or landscape orientation ( MAC400 accessory can be used to rotate without removing the screen)
Integrated cable management
Ships as complete in-wall swing arm - zero assembly required
General Specs | |
| Color/Finish Name | Black |
| TV Size's up to (in.) | 55 |
| Mount Type | Tilt |
| Mounting Location | Wall |
| Compatible Vesa Sizes | 100 x 100mm; 709 X 431mm |
| Number Of Mounts | 1 |
| Tilt | Yes |
| Low Profile | Yes |
| Weight Capacity (lbs.) | 125 |
General | |
| Lateral Shift | 5" (127.mm) |
| Manual Height Adjustment | 1" (25 mm) |
| Maximum Extension | 10" (254 mm) |
| Minimum Depth | 1.7" (43.2 mm) |
| Notes | Depth and Extension do not include interface bracket (adds 0.5 - 1.5") |
| Pivot Numerical Value | +/- 37.5° (depending on screen width) |
| Post-Installation Leveling Roll | Yes |
| Shipping Weight | 49.5 lbs (22.45 kg) |
| Solution Type | Universal |
| Tilt | + 2° , - 15° |
| Typical Screen Sizes | 30 - 55" |
| Wall Stud Compatibility In | 16" (406 mm) |
| Orientation | Landscape, Portrait |
